Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

نام تجاری:	Honghao
شماره مدل:	HH-1858
مقدار تولیدی:	1
قیمت:	$750-800

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

چونگ کینگ ، چین

درجه فولادی:

فولاد ضد زنگ

مادی:

فولاد ضد زنگ

استحکام کششی:

1570MPA ، 1620MPA ، 1670MPA ، 1770MPA ، 1960MPA

تحمل:

± 1 ٪

حداقل بار شکستن:

125kn تا 30804KN

بار تک پا:

25kn تا 6161KN

بار دو پا:

45kN تا 11089KN (90 ° 0) ، 35kN تا 8625KN (120 ~ 90 90)

وزن:

0.67 کیلوگرم در متر تا 180.13 کیلوگرم در متر

حداقل شعاع خمش:

1.5 دیا

کوتاهترین دور زنجیر:

50 بار قطر زنجیر

عامل ایمنی:

5 (d≤60mm) ، 6.31-0.022d (60 150 میلی متر)

سرویس پردازش:

خم

درمان سطحی:

گالوانیزه شده یا گالوانیزه نشده

استراندارد:

ASTM ، GB ، DIN ، JIS ، AISI ، BS

بسته بندی:

1000 متر رول ، 500 متر رول ، 300 متر رول ، 200 متر رول یا سفارشی

برجسته کردن:

stainless steel wire rope sling,galvanized lifting wire rope,ANSI standard wire rope

galvanized lifting wire rope

ANSI standard wire rope

توضیح محصول

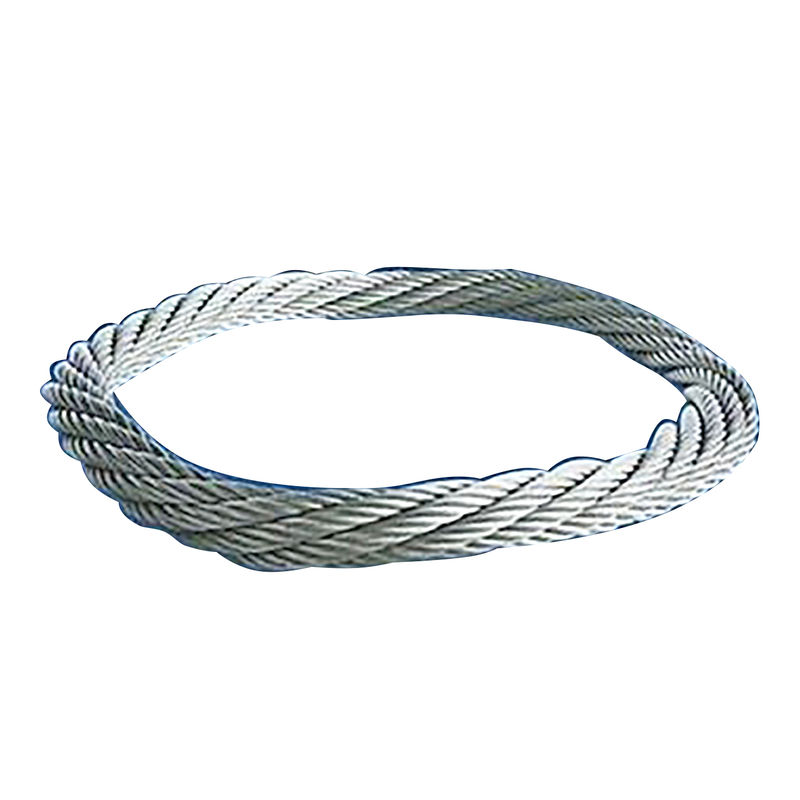

Stainless Steel Grommet Wire Rope Lifting Sling Pressed Endless with Bending Processing Service ANSI Standard

Product Attributes

Attribute	Value
Steel Grade	Stainless Steel
Standard	AISI
Type	Galvanized
Application	Hanging lamp, pergola, flagpole, clothesline etc.
Alloy Or Not	Non-Alloy
Special Use	Cold Heading Steel
Tolerance	±1%
Processing Service	Bending
Grade	Stainless Steel
Delivery Time	15-21 days
Product Name	Wire Rope Sling
Material	Stainless Steel

Product Specifications

Standard	ASTM
Place of Origin	China
Brand	Honghao
Surface	Galvanized, Ungalvanized
Tensile Strength	1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
Material	Stainless Steel / High Carbon Steel
Standard	ASTM, GB, DIN, JIS, AISI, BS
Term of Payment	L/C, T/T, D/P, Western Union, One Touch
Packing	1000m roll, 500m roll, 300m roll, 200m roll or as your requirements

Product Features

Grommet sling spliced by wire rope with class B or AB, fiber core, nominal tensile strength 1670MPa
Available in three surface treatments: galvanized with lubrication, galvanized without lubrication, and ungalvanized
Breaking load varies based on wire rope capability selection
Minimum breaking load is 5 times working load with adjustable safety factors
Ideal for limited space lifting with minimum sling circumference of 50 times sling diameter
Minimum bend radius of lifting point area not less than 1.5 times diameter
Material: Galvanized or Stainless Steel
High tensile strength, good flexibility, low elongation
Widely used in conveyor belt systems

Technical Specifications

ITEM No.	Min. Breaking Load (kN)	Single Leg Working Load (kN)	Double Legs Working Load (kN) 0~90°	Double Legs Working Load (kN) 90~120°	Weight (kg/m)
WJT15	125	25	45	35	0.67
WJT18	181	36	65	51	0.97
WJT21	246	49	88	69	1.33

Product Images

Packing & Delivery

Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box, or as per customer's requirements.

Company Profile

We have been in the line of international business for more than 15 years.

FAQ

1. Who are we?
We are based in Chongqing, China, starting from 2022, selling to North America (25.00%), Eastern Asia (20.00%), Southeast Asia (20.00%), South America (10.00%), Mid East (10.00%), Oceania (5.00%), Central America (5.00%), Eastern Europe (5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Electric Cars, New Energy Vehicle, EV car.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW; Accepted Payment Currency: USD, EUR; Language Spoken: English, Chinese.
